# Tab Navigator

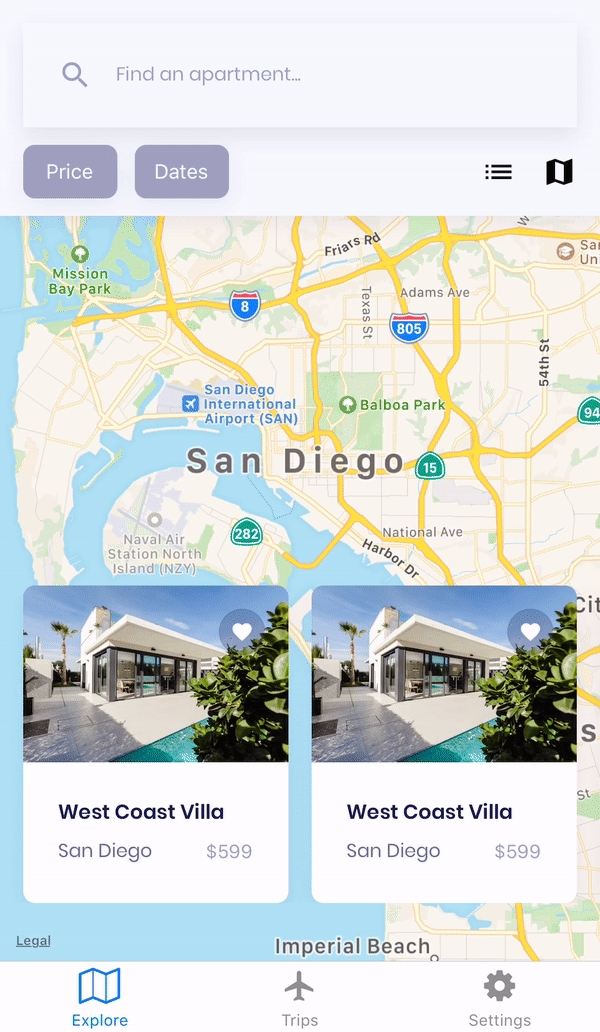

\*Tab Navigators allow you to add tabbed navigation to the bottom of your app. The bar is fixed to the bottom of the screen. Each tab is linked to a screen (or navigator) and displays an active state when selected.

![](https://files.readme.io/d18fedb-tabnav.gif)![](https://files.readme.io/d18fedb-tabnav.gif)

| Parameter | Description                                                                                                            |
| --------- | ---------------------------------------------------------------------------------------------------------------------- |
| **Font**  | Set the font, font size, and line height for the tab labels (*Note: `Show labels` must be active in the configs tab*). |

In this section, you can set colors for a tab's Active state (when the screen attached to the tab is currently being viewed) and Inactive state (screens that are not being viewed).

| Parameter      | Description                                                                                                                                 |
| -------------- | ------------------------------------------------------------------------------------------------------------------------------------------- |
| **Text**       | Set the color of the tab label (*Note: Show labels must be active in the* [*styles*](https://docs.draftbit.com/docs/tab-nav-styles) *tab*). |
| **Icon**       | Set the color of the tab icon (*Note: Show icon must be active in the* [*configs*](https://docs.draftbit.com/docs/tab-nav-configs) *tab*).  |
| **Background** | Set the color of the area of the tab                                                                                                        |

| Parameter                                  | Description                                                      |
| ------------------------------------------ | ---------------------------------------------------------------- |
| **Name**                                   | Set the name for the navigator to appear in the Navigation tree. |
| **Initial Route**(*Make sure this is set*) | Set a screen or navigator as the initial route.                  |
| **Number of tabs**                         | Set the number of tabs to appear in the navigator (max 5).       |
| **Show labels**                            | Enable to show labels on each tab.                               |
| **Show icons**                             | Enable to show icons on each tab.                                |
| **Label position**                         | Set the position of the tab label.                               |

| Parameter | Description                                                                                                      |
| --------- | ---------------------------------------------------------------------------------------------------------------- |
| **Route** | Assign a screen in the navigator to a tab.                                                                       |
| **Label** | Set the label for the tab (*If a label is not set in this section, the label name defaults to the screen name*). |
| **Icon**  | Set an icon for the tab.                                                                                         |

| Parameter                    | Description                                                                                           |
| ---------------------------- | ----------------------------------------------------------------------------------------------------- |
| **Lazy Load**                | If enabled, tabs will only render in the active state.                                                |
| **Back Behavior**            | Set the back behavior for the navigator.                                                              |
| **Allow Font Scaling**       | Enable so that the label font will scale to meet Text Size accessibility settings (defaults to true). |
| **Adapt to Screen**          | Enable so the navigator adapts to the size of the screen.                                             |
| **Hide When Keyboard Shown** | Enable so that the navigator is hidden when the keyboard appears on the screen.                       |

[React Navigation - TabNavigator reference](https://reactnavigation.org/docs/1.x/tab-navigator/)\
 [React Navigation - Tab navigation](https://reactnavigation.org/docs/tab-based-navigation/)
